Description
This press is intended for the repair and production of sneakers, shoes and boots with bowl-shaped soles from 6 to 16 men’s sizes. During pressing its diaphragm simultaneously presses against and the bottom of the sole as well as the part that surrounds the upper of the shoe. The clamping force is adjustable and can be up to 15 psi.

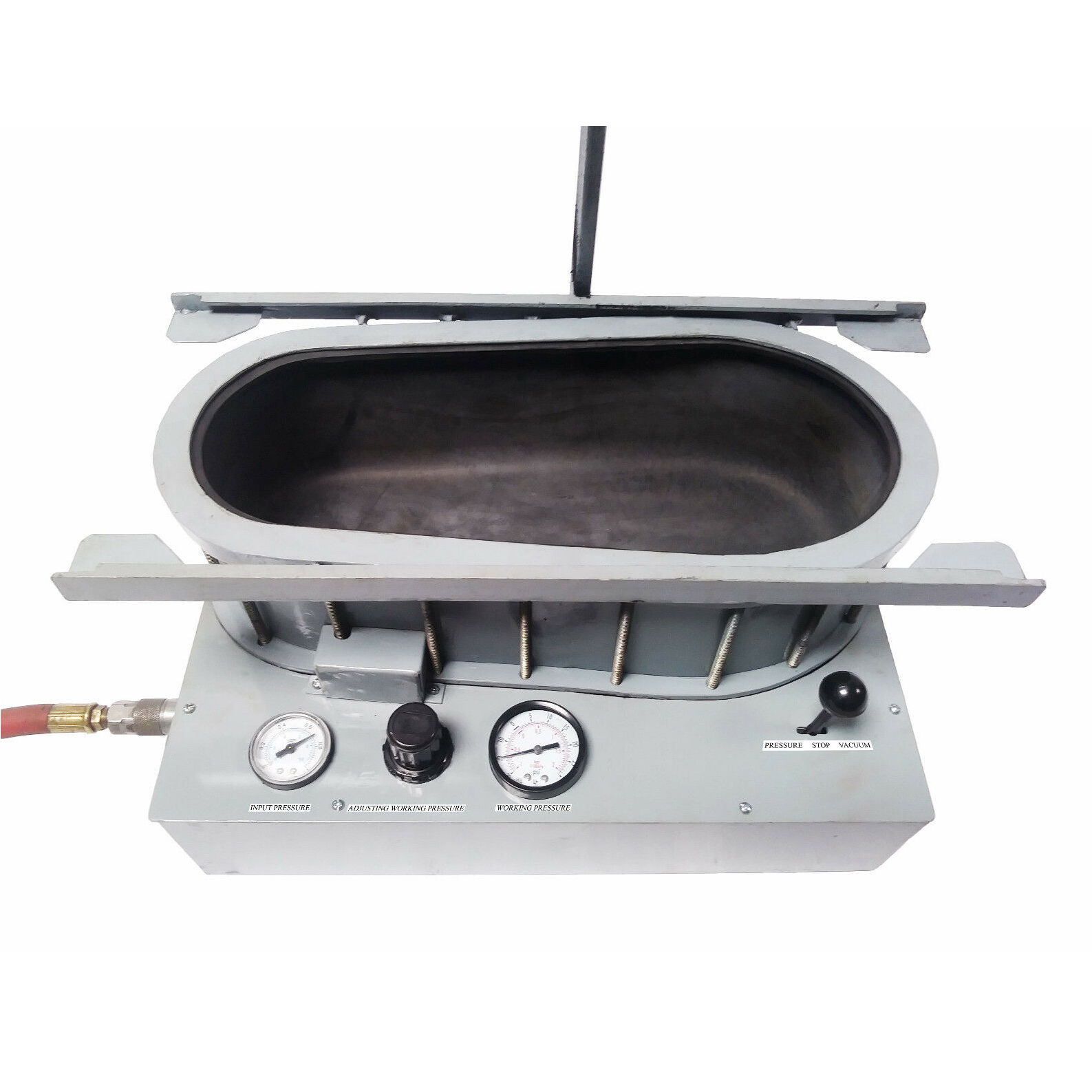

The press consists from the base, the air unit and the rack with a movable prop on it. On the base are located (from left to right): a pressure gauge showing the air pressure at the input of the press; pressure regulator in air unit; a gauge which shows in the air unit either a vacuum or a pressure in the air unit; 3-position switch, providing in the air unit either or vacuum or pressure. On the left side wall there is a connector for connection hose from the compressor.

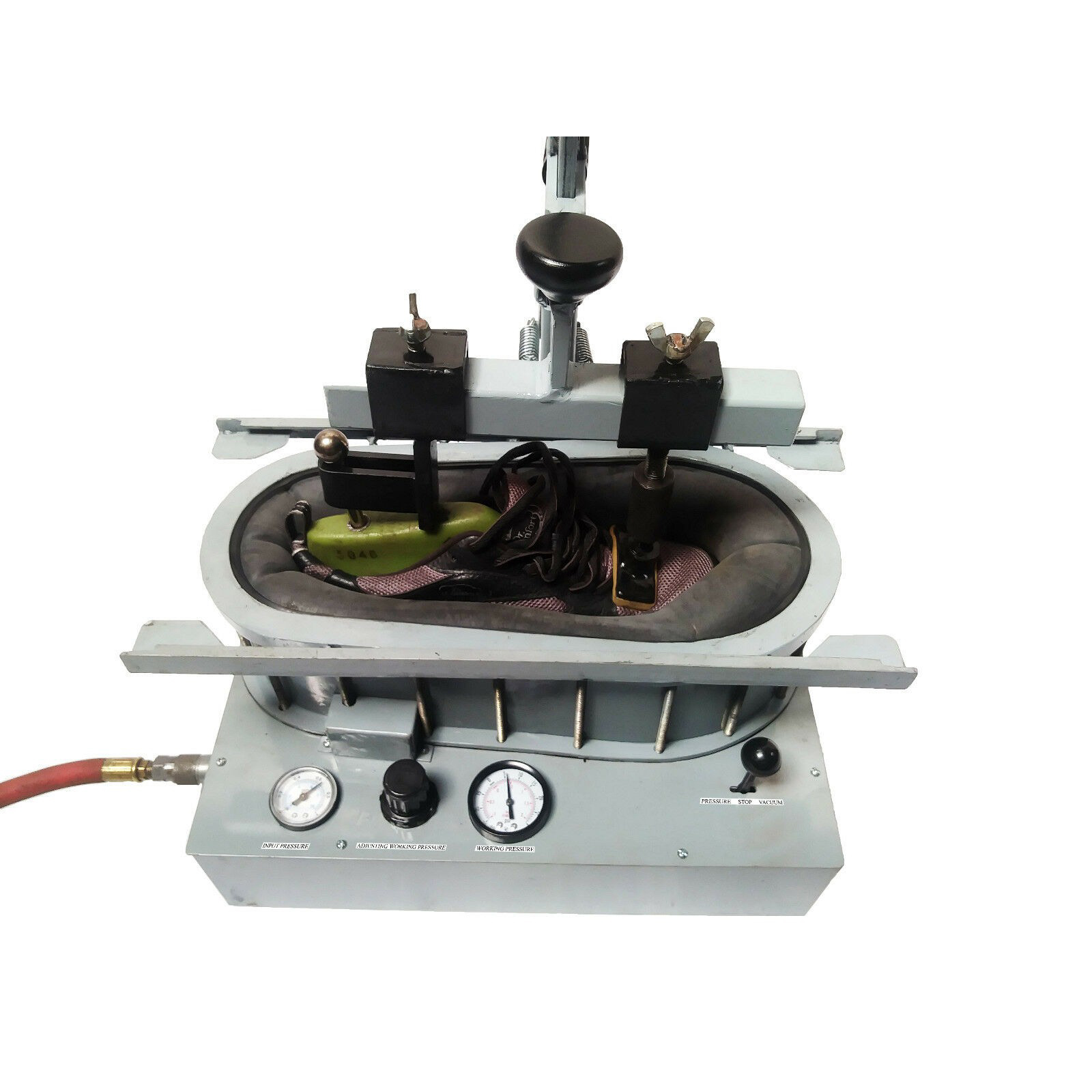

The use of the press is very simple and consists in the following: – connect the hose from the compressor to the press; – make sure that the press receives air pressure: the left-hand manometer should show from 100 to 130 psi (from 5 to 7 atmospheres); – set the switch to the right position, “vacuum”; – when the diaphragm of the air chamber takes up the most concave position, move the switch handle to the middle position “off”; – to top of shoe, prepared for gluing, and dressed on the last, attach a sole prepared for gluing; – put the billet in the cavity of the air chamber then lower the movable holder to against the stop to the last and the pin to insert into hole of the last; – to set the switch in the “pressure” position; – after the desired time of gluing, to put switch in the “vacuum” position and when the glued shoe will in the free position, to retrieve it from the press.
Contents of delivery: press in a complete set, (the compressor is not included in the package). .
Warranty: 12 months from receipt of purchase.
Price $2639.99
Shipping Free.
